Description

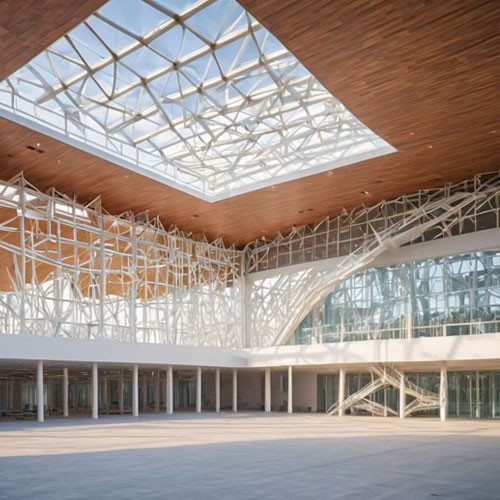

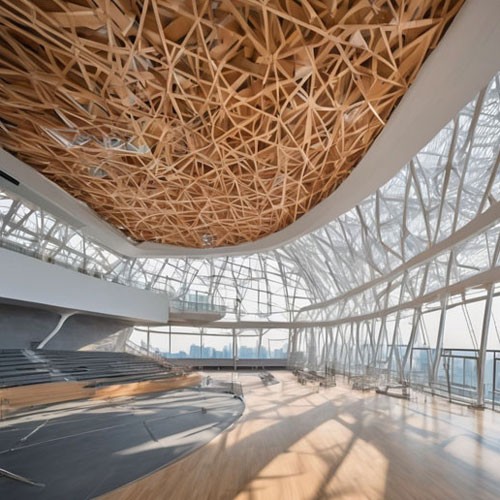

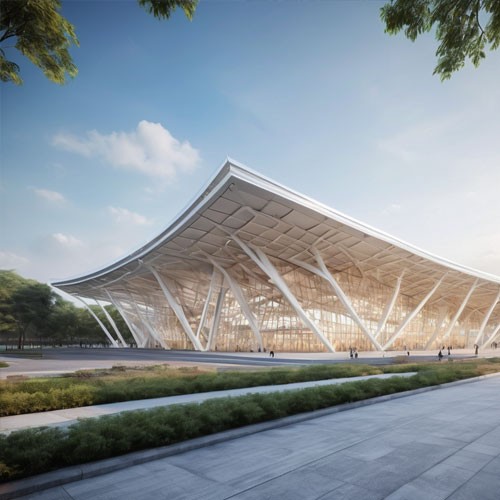

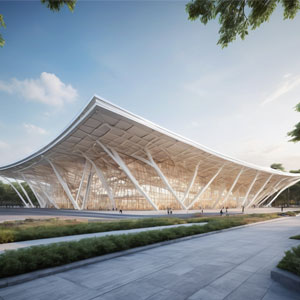

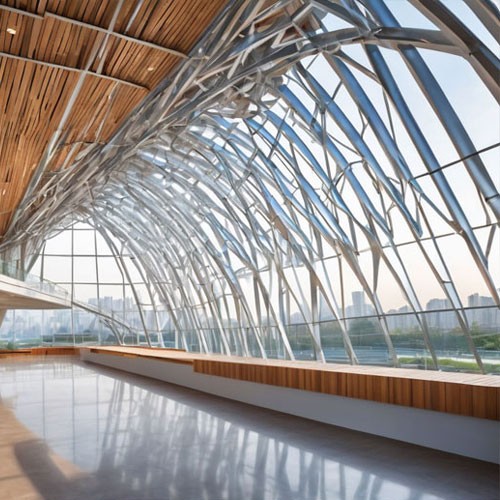

Truss steel structure stands out for its unique structural form and excellent performance. From the building in the picture, you can get a glimpse of its charm. The truss steel structure used in this building shows the harmonious unity of mechanics and aesthetics.
1. Principles and characteristics of truss steel structure
Truss steel structure is a lattice structure system composed of rods connected by nodes. Its rods mainly bear axial forces, which can give full play to the strength of the material. Under the same bearing capacity, it can reduce the amount of materials compared with other structural forms. This structure has a large span capacity and can easily cover a large space to meet the functional requirements of large buildings such as exhibition halls and gymnasiums.
The node design of truss steel structure is the key. The connection method of the node directly affects the force performance and stability of the entire structure. Generally, welding, bolt connection and other methods are used to ensure that the node can reliably transmit the internal force between the rods. Moreover, the truss steel structure has various forms and can be flexibly designed according to the function, shape and force requirements of the building. There are many forms to choose from, such as parallel chord truss, triangular truss, trapezoidal truss, etc.
2. Advantages of tube truss steel structure
The tube truss steel structure is a special form of truss steel structure, which uses round tubes or square tubes as rods. The advantages of tube truss steel structure are numerous.
First of all, from the perspective of mechanical properties, round tubes or square tubes have better cross-sectional characteristics when bearing axial force and bending moment, and can more effectively resist external forces. Secondly, the appearance of the tube truss is simple and smooth, and the lines of the round tube or square tube give the building a sense of modernity and art, which can be well integrated with the surrounding environment. Furthermore, in the production process of the tube truss steel structure, the processing of the pipe is relatively simple, and the welding quality is easy to ensure, which is conducive to improving production efficiency and structural quality.
3. The unique charm of the spherical grid structure
The spherical grid structure is also an important member of the large-span space structure. It is composed of multiple rods connected by nodes in a certain grid form to form a spatial force system.
The spatial force characteristics of the spherical grid structure give it extremely high stability. When subjected to vertical loads, horizontal loads and earthquakes, the loads can be evenly distributed to the foundation through the coordinated work of the grid rods. Moreover, the spherical grid structure can cover a large area of column-free space, which is particularly important for large indoor venues such as airport terminals and exhibition centers. In addition, the spherical grid structure has a beautiful shape and can be in various forms such as flat and curved, adding a unique visual effect to the appearance of the building.
4. Application of truss steel structure in architecture
Back to the building in the picture, the application of its truss steel structure is undoubtedly a highlight. These truss structures not only bear the heavy responsibility of supporting the roof, but also create a very distinctive appearance for the building.
In terms of construction, truss steel structures can usually be prefabricated in the factory and then transported to the site for assembly, which can greatly shorten the construction period and reduce the impact of on-site construction on the environment. At the same time, because the steel structure has good recyclability, it conforms to the concept of environmental protection and sustainable development of modern buildings.
Whether it is truss steel structure, tube truss steel structure or spherical grid structure, they all play an important role in modern architecture. With their excellent mechanical properties, flexible shapes and efficient construction methods, they provide architects with a broad creative space and bring people functional and beautiful architectural works. In the future development of architecture, truss steel structures will continue to shine and create more amazing architectural miracles.
