Description

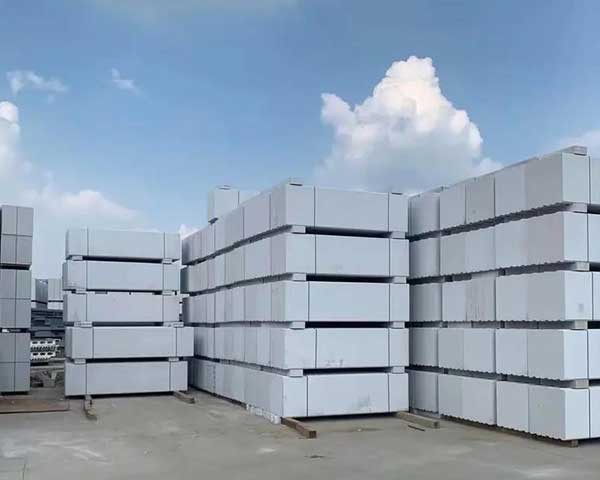

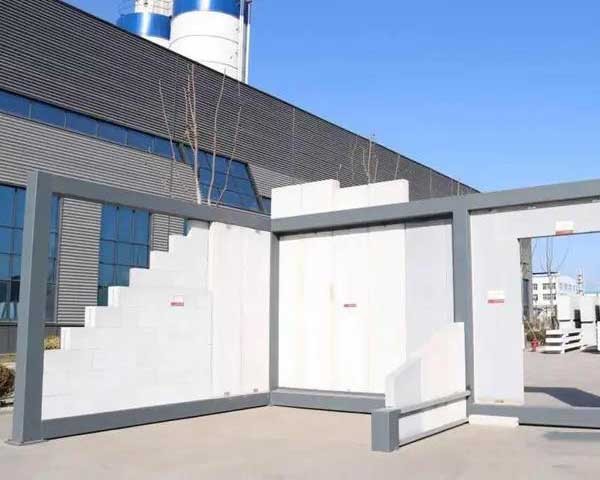

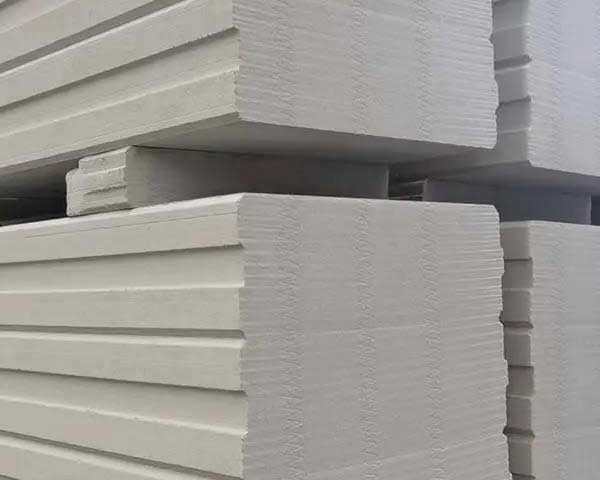

The company has a first-class automatic production line in the domestic industry, with an annual output of 300000 cubic meters of ALC panels and 200000 cubic meters of blocks. The products are widely used in public buildings, industrial plants, light steel structures, villas and prefabricated buildings. ALC panel is mainly made of quartz sand, cement, aluminum powder, lime, etc. as the main raw materials, with double-layer and two-way reinforcement mesh treated with rust prevention and anti-corrosion, and porous concrete board cured by high temperature, high pressure and steam. The ALC panel can be used as partition panel, exterior wall panel, roof panel (floor panel) and fireproof panel. It has the advantages of light weight, good fire resistance and sound insulation, green environmental protection, and convenient construction.

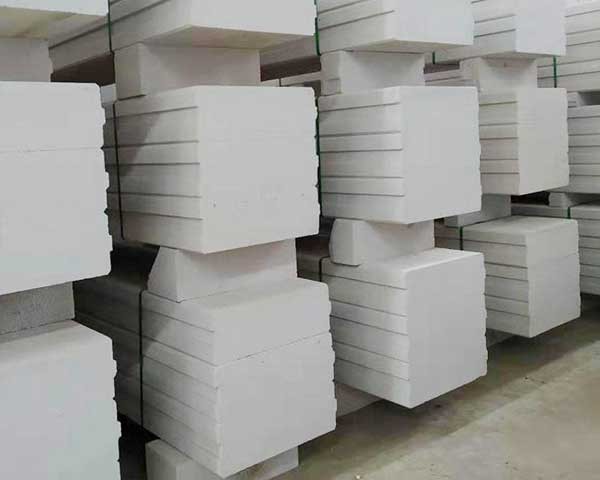

| Block Size | ||||||
| type | Grooved block | Grooveless block | ||||
| Length (mm) | 600 | 600 | ||||
| Width (mm) | 150/180/200/240/250/300 | 150/180/200/240/250/300 | ||||
| Height (mm) | 150-300 | 150-300 | ||||
| ALC panel size | ||||||
| Category | Length (mm) | Width (mm) | Thickness (mm) | |||
| Partition board | 3000/4000/5000/6000 | 600 | 75/100/125/150/175 | |||
| Exterior wall panel | 3000/4200/5200/6000 | 600 | 100/125/150/175/200 | |||
| Roof panel | 2700/3500/4000/6000 | 600 | 100/125/150/200/250/300 | |||
| Floor panel | 2100/2700/3400/4500/5700/6000 | 600 | 100/125/150/200/250/300 | |||
| Strength level | ||||||
| Partition panel | A3.5/A5.0 | |||||
| Exterior wall panel | A3.5/A5.0 | |||||
| Roof panel | A3.5/A5.0 | |||||
| Floor panel | A3.5/A5.0 | |||||
| Fireproof panel | A3.5/A5.0 | |||||
| Density/Thermal conductivity/Thermal storage coefficient | ||||||
| Category | Standard B05 | Standard B06 | ||||
| Dry density (kg/m³) | ≤525 | ≤625 | ||||
| Thermal conductivity for design | ≤0.14 | ≤0.16 | ||||
| Heat storage coefficient for design (w/㎡*k) | 2.75 | 3.2 | ||||
| Fire performance | ||||||
| Thickness | Fire resistance limit (H) | |||||
| 100 mm wall panel | ≥4 | |||||
| 50 mm walll panel | ≥3.5 | |||||
| Impact resistance & Single point suspension | ||||||
| Impact resistance (times) | ≥15 | |||||
| Hanging force (N) | ≥1500 | |||||

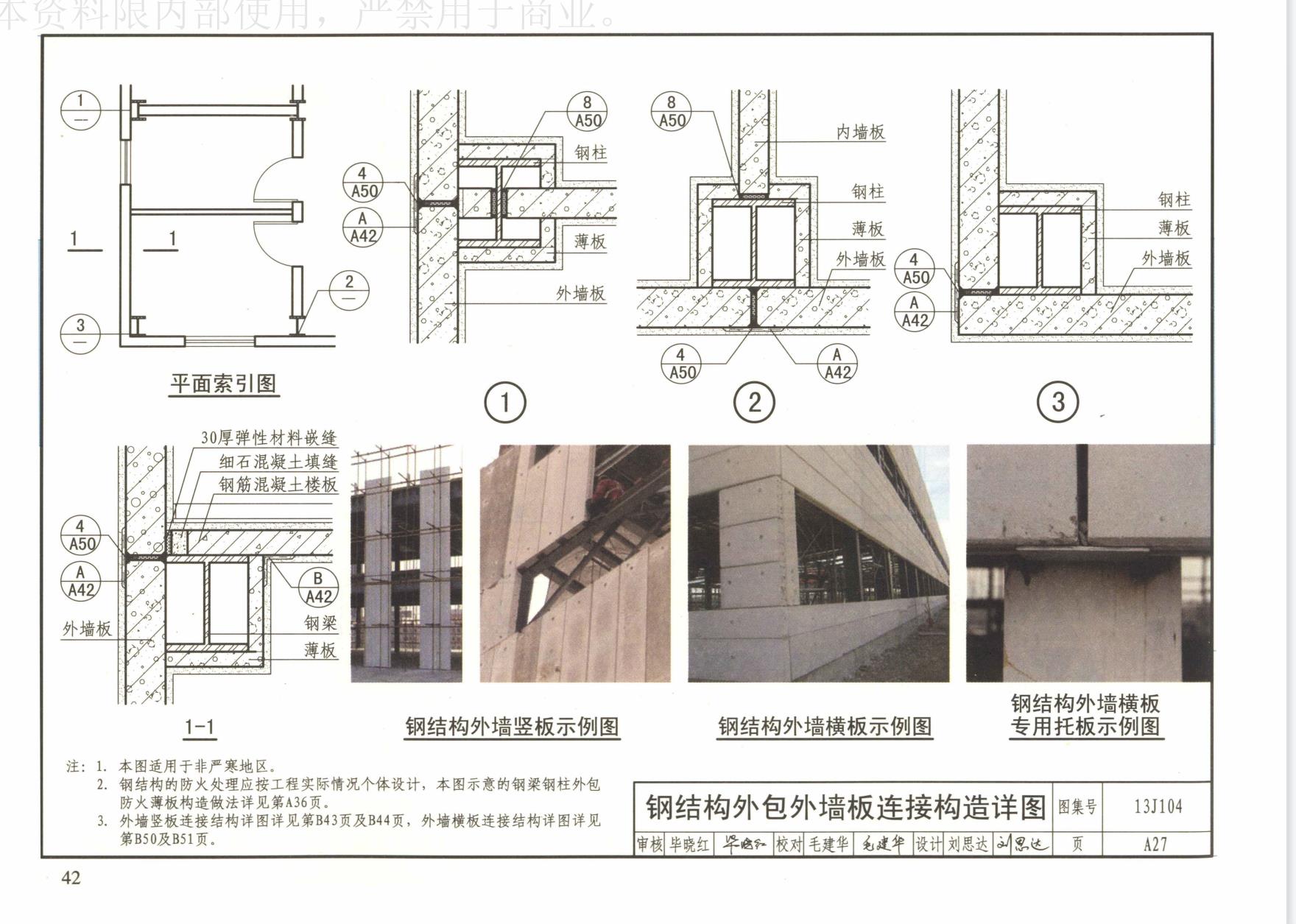

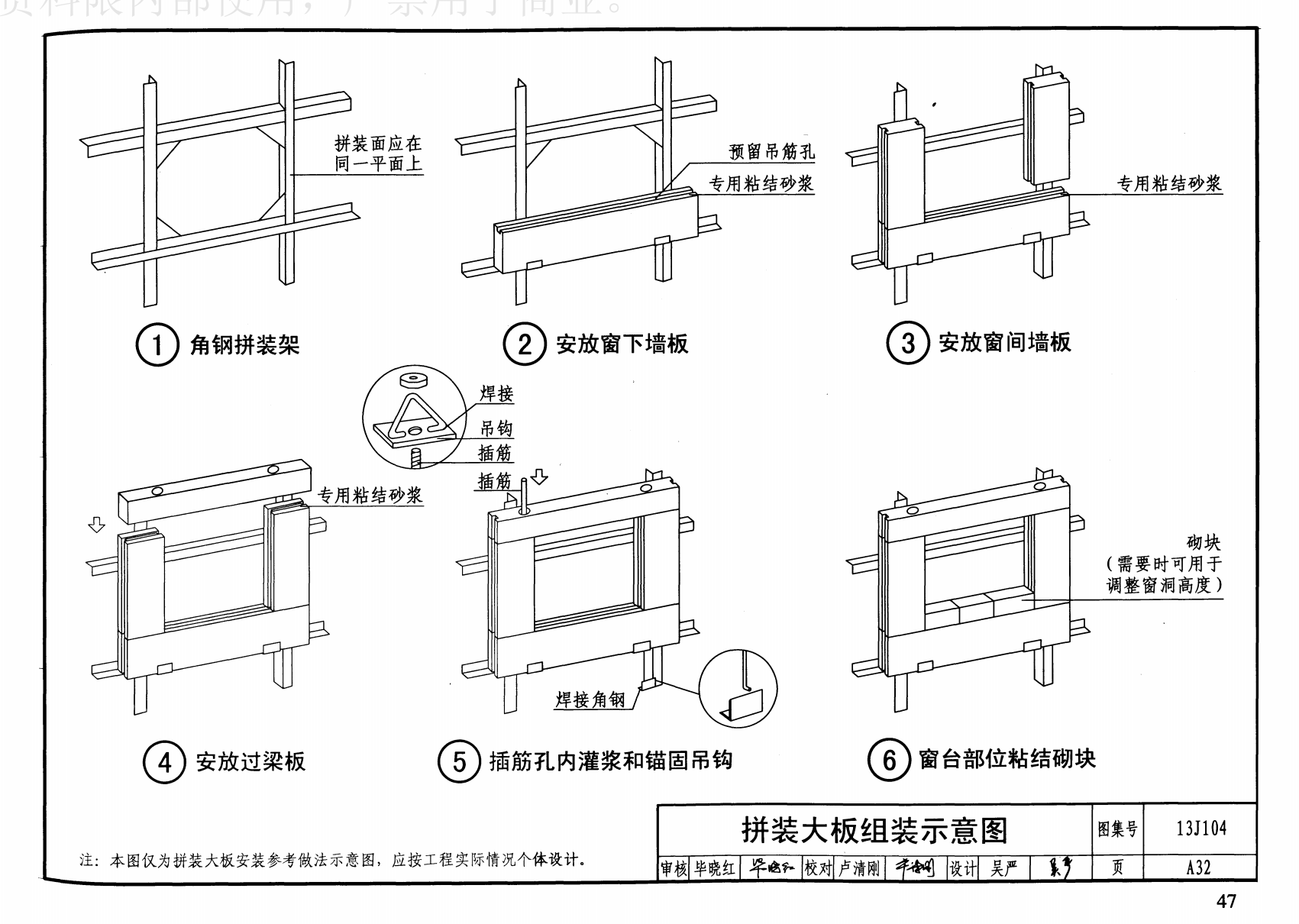

| Fixing method | ||||||
| Height (mm) | Exterior wall panel | Interior wall panel | ||||
| ＜30m | Stainless steel connector, hook bolt, C-type panel dowel method, steel pipe anchor | U-shaped clamp, right angle steel, hook bolt, C-shaped panel dowel method | ||||
| ＞30m | Hook bolt, steel pipe anchor | Floor panel: hook bolt, joint reinforcement | ||||
